LAOWA 12mm T/2.9 ZERO-D Canon EF CINE Lens – (Imperial) Feet
Original price was: $340.00.$99.99Current price is: $99.99.
- Shop with Ease
- Unbeatable quality, unbeatable prices.
- fast shipping
- Online assistance, always at your service.

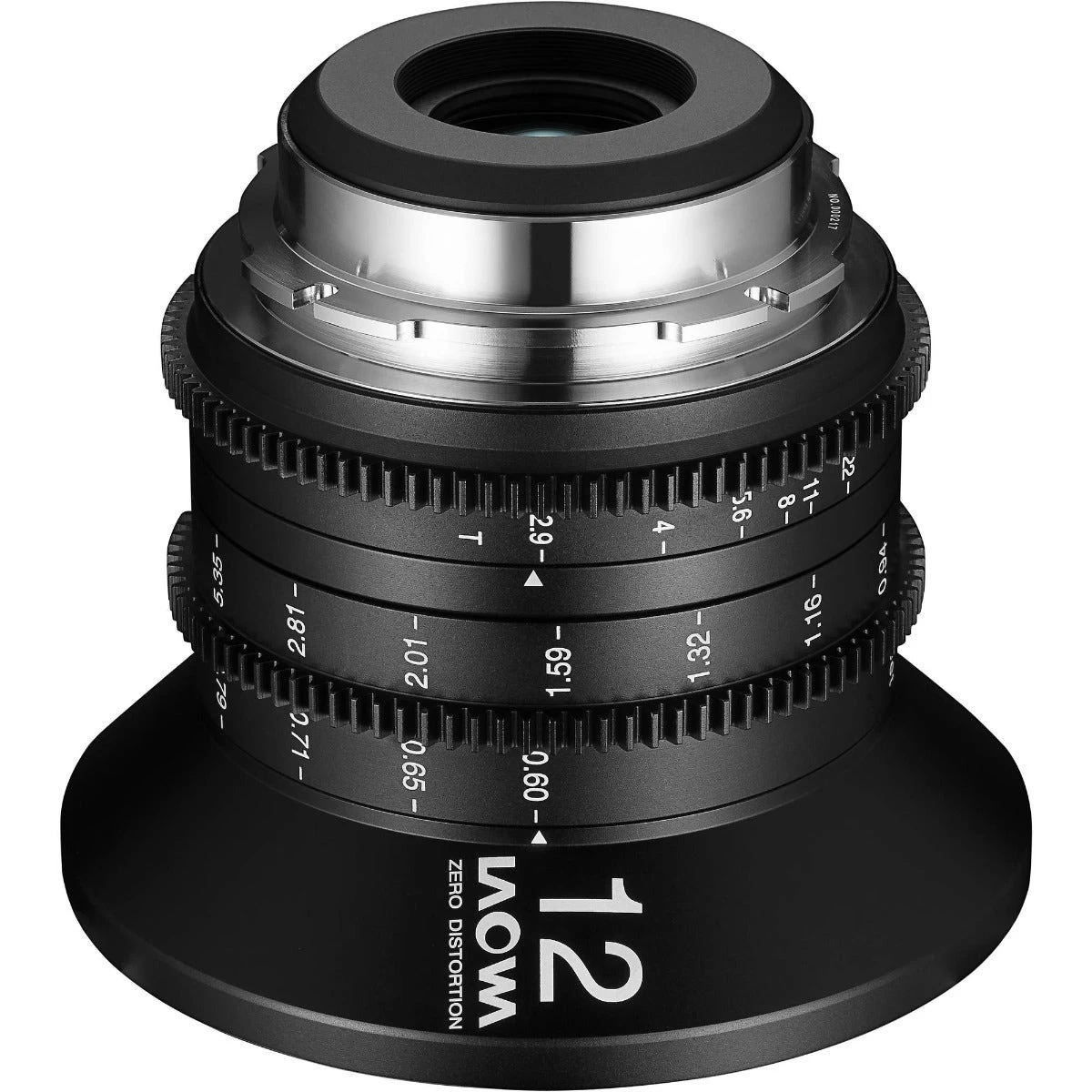

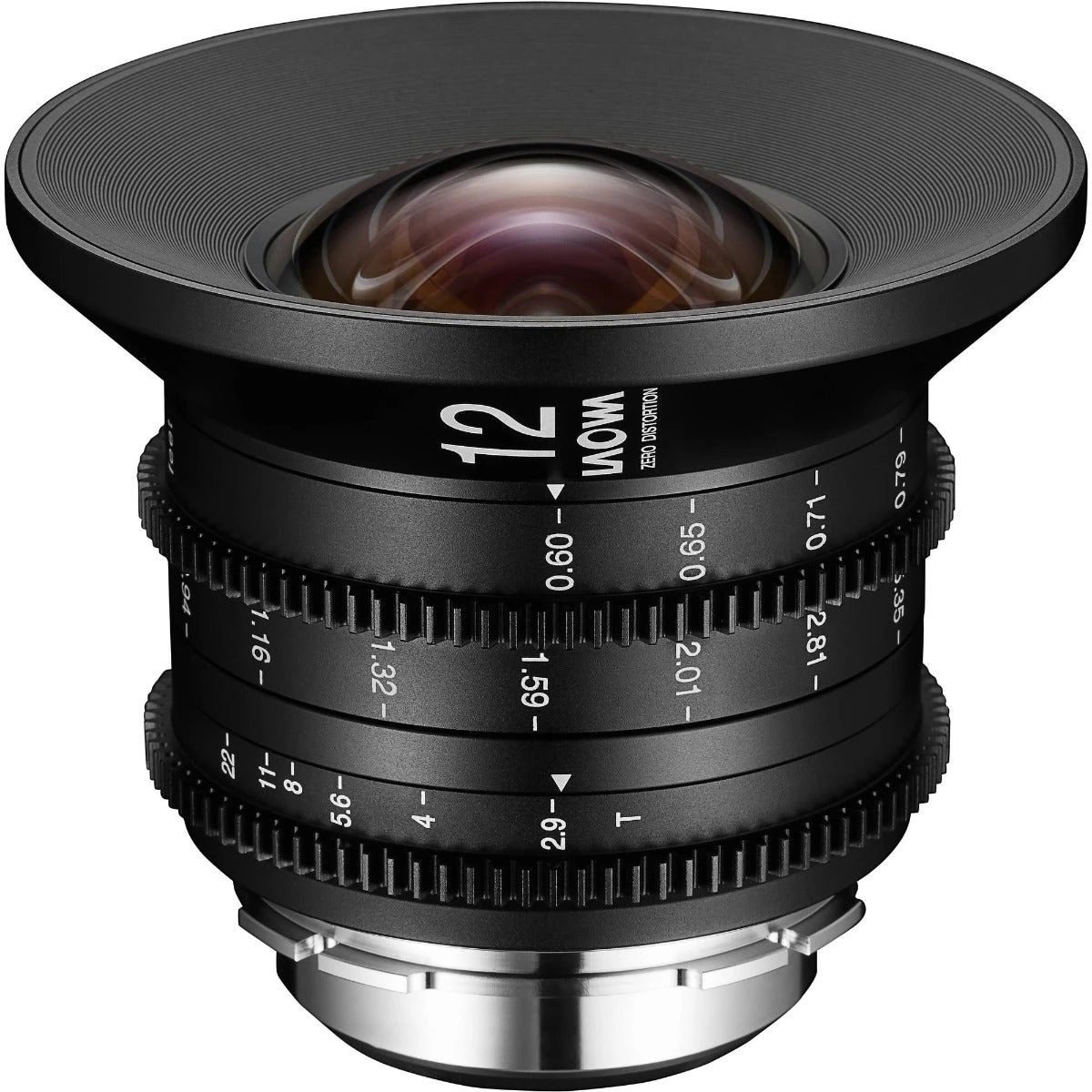

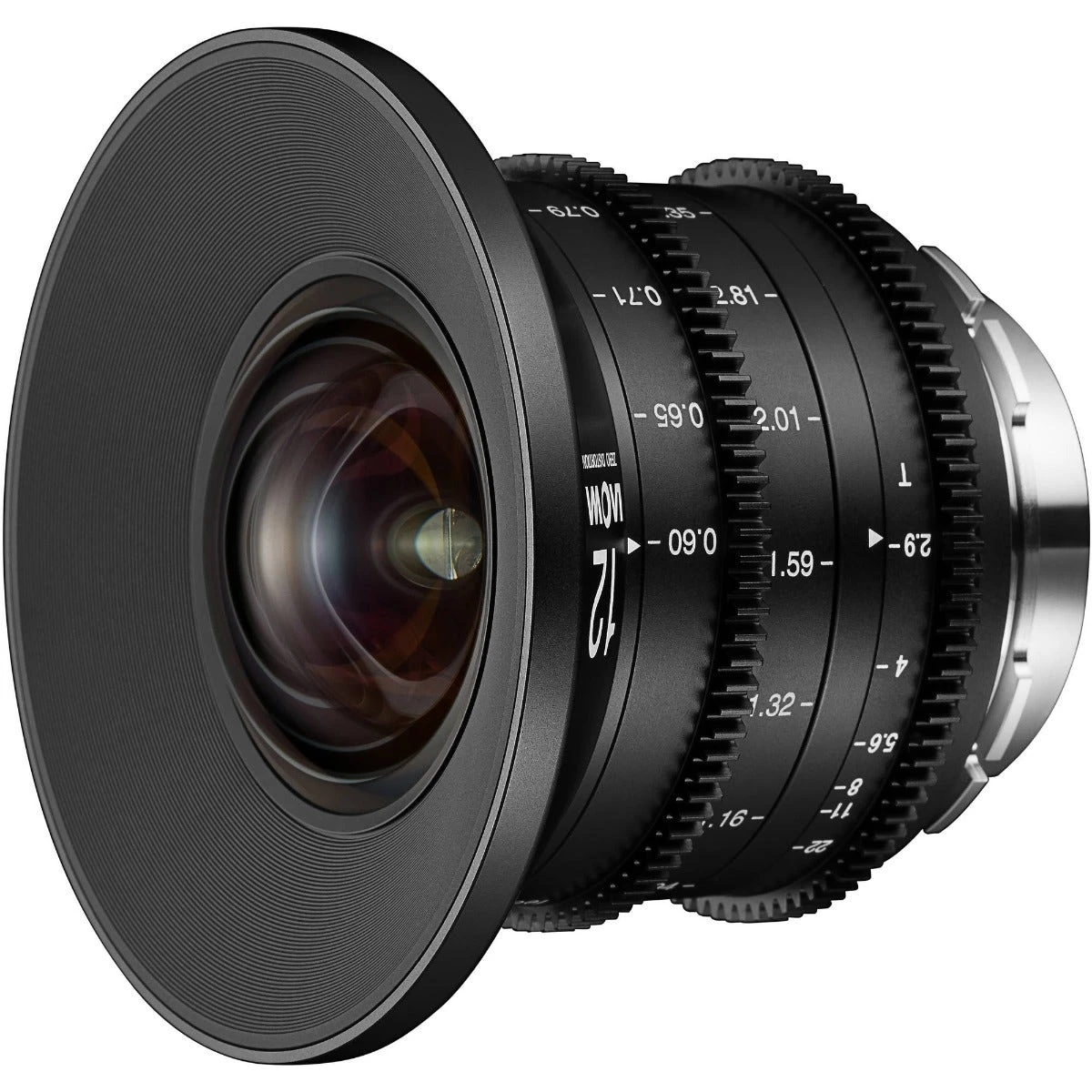

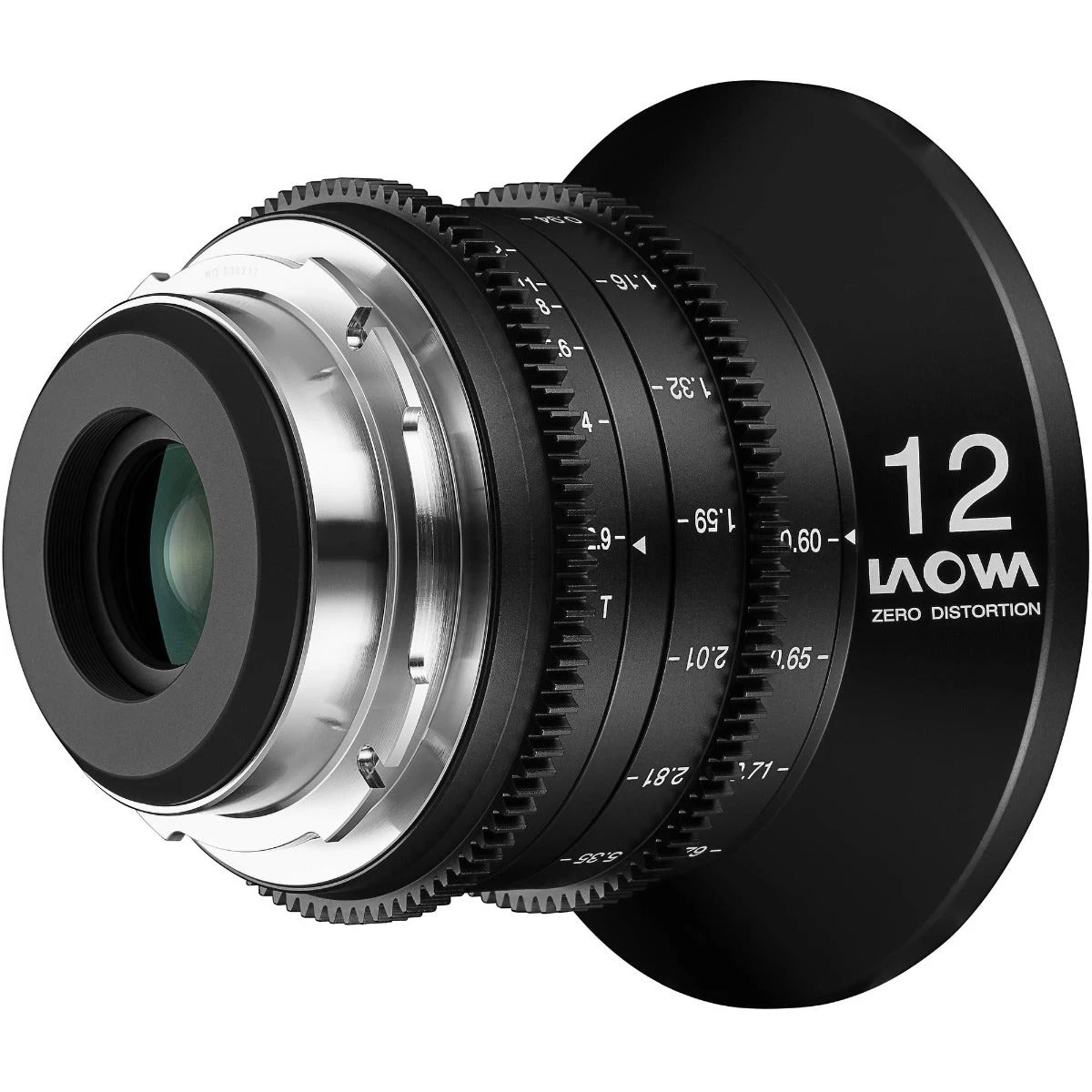

The Canon EF mount LAOWA 12mm T/2.9 ZERO-D Canon EF CINE Lens provides a wide, 122° angle of view well
suited for outdoor and landscape shots and in tight interior locations, and it
is optimized for digital cinematography. It is so lightweight and compact that it can be used not only with handheld
shooting, it is also light enough for use on gimbals. The lens produces an image circle that will cover full-frame,
VistaVision, and ARRI ALEXA LF sized sensors or smaller.
The 12mm cine lens features a maximum aperture of T2.9 with 16 elements in 10 groups. Its 7-blade aperture provides a
soft, pleasing bokeh, a shallow depth of field with little to no distortion, and a 18cm close focus distance. The focus
and aperture rings feature industry-standard 0.8 pitch gearing that will accommodate standard cine follow focus motors.
The 102mm front diameter can be stepped up to 114mm with the included adapter to fit industry-standard matte boxes to
prevent glare and reflection, as well as to add filters. Focus, aperture, and depth of field markings are in feet on the
side of the lens to aid focus pullers.

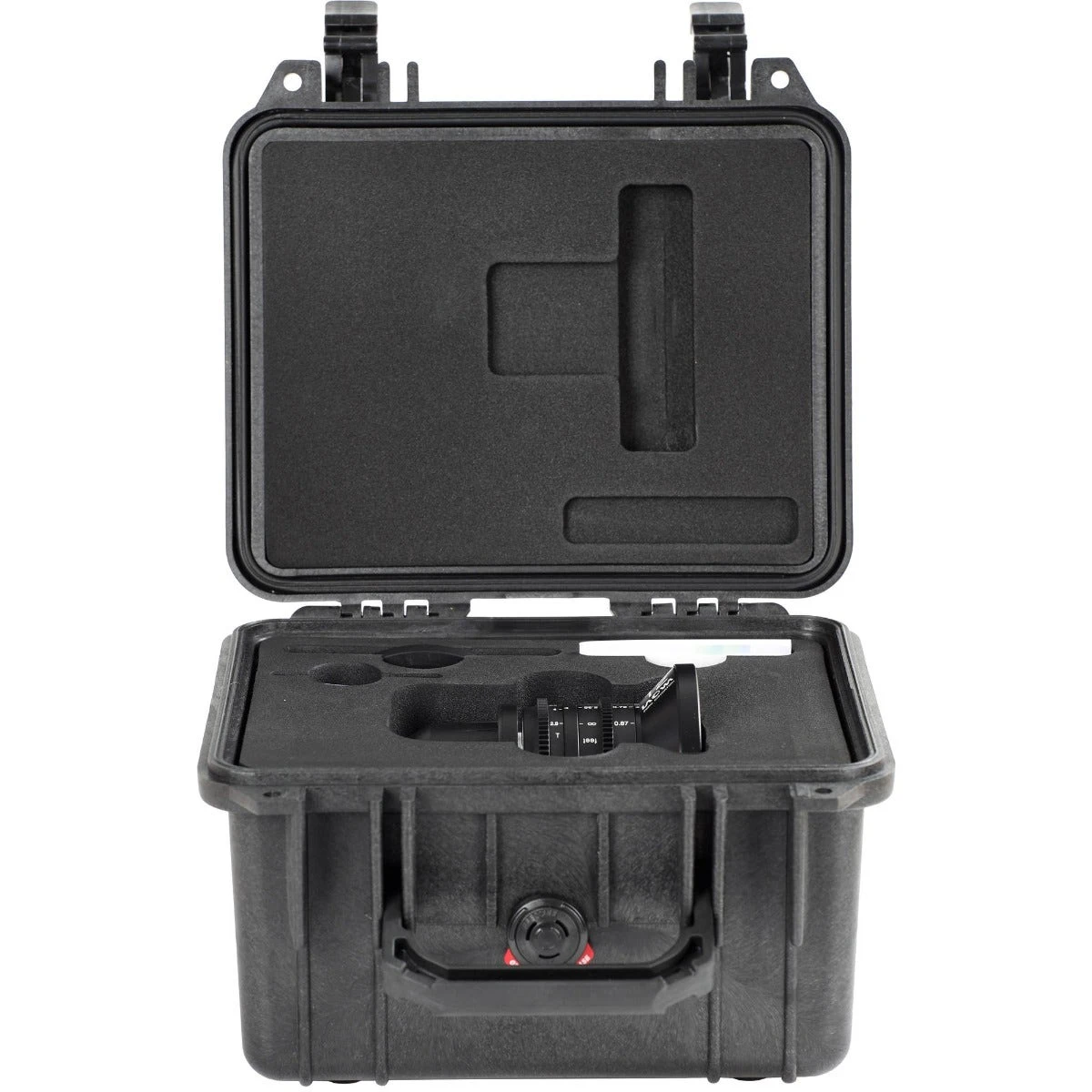

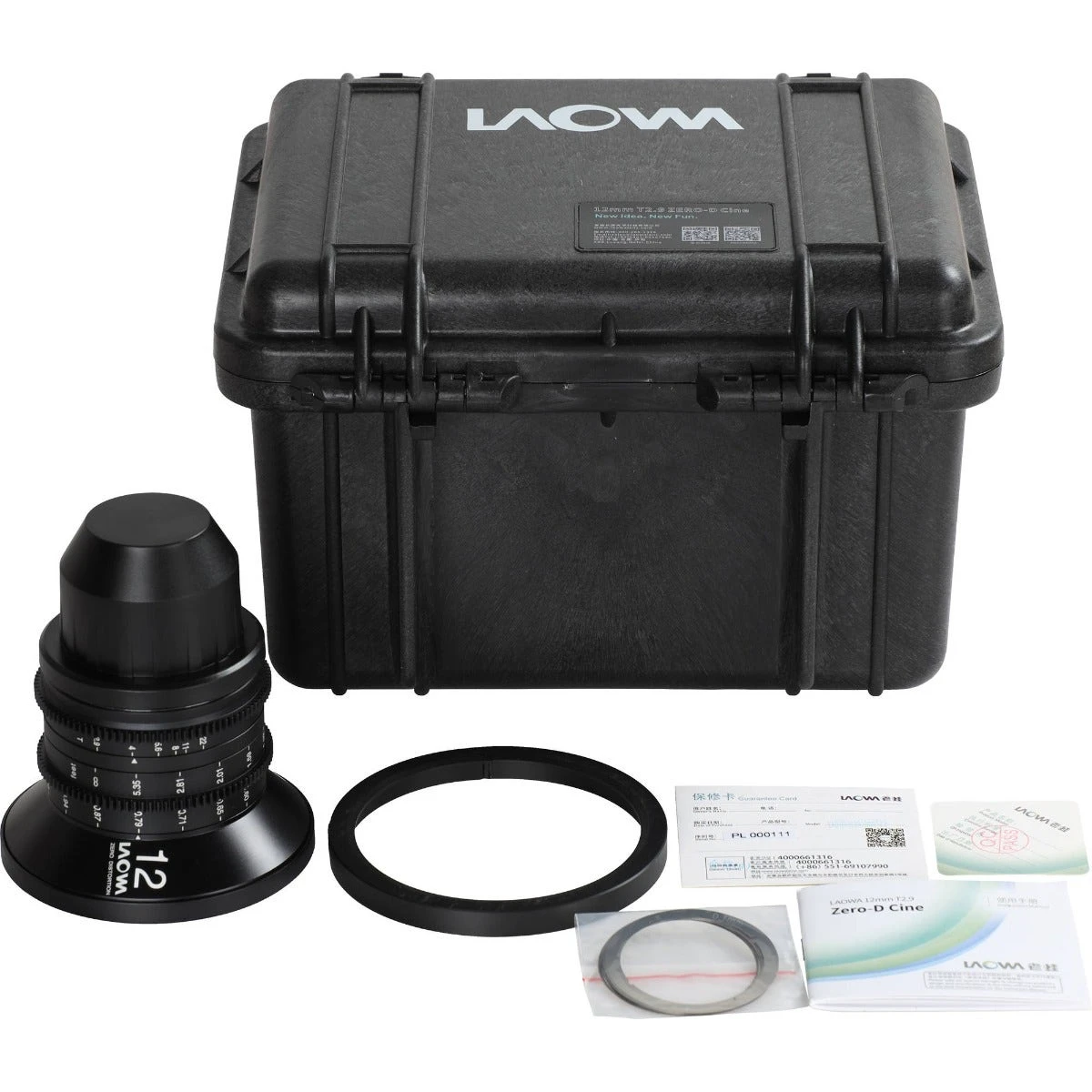

In addition to the 114mm step-up adapter ring, a shim set is included for calibration, and a hard-shell Pelican case
with custom foam is included to protect and transport the lens.
Key Features of the LAOWA 12mm T/2.9 ZERO-D Canon EF CINE Lens
- Ultra wide-angle 12mm T2.9 prime designed for EF mount cine cameras with up to full-frame/VistaVision/ALEXA LF sensor
- Designed with 16 elements in 10 groups, low distortion, and 7-blade iris
- Close to zero distortion
- 102mm front diameter with 114mm step-up adapter ring to fit industry-standard matte box
- 18cm close focus, smooth 270° focus rotation, and standard 0.8 MOD focus ring
- Shim set and hard-shell Pelican case with custom foam are included
Suitable for both Large format & Super35 cameras
The image circle allows cinematographers to use not only on full frame sensors (Size = 43.14mm), but also able to fill
the Vista Vision sensors on RED Monstro and the sensor on Arri Alexa LF (Size @ open-gate = 44.7mm) fully. The lens is
also ideal for Super35-sized camera owners with the ultra-wide 17mm equivalent field of view and its future-proof
decision when cinematographers need to upgrade to large format cameras.
Super compact & lightweight
This 12mm lens is extremely compact and lightweight despite of the extreme specifications. It measures 3.4” (87mm) long
and weighs less than 1.5 lb (675g). It can be easily fitted onto any sorts of stabilizations system including handheld
gimbals.
Close-to-zero distortion
The optical distortion of ultra-wide angle lens will never be a nightmare for DoP. The distortion rate of good wide
angle lenses in the market ranges from 2-4%. Venus Optics, however, are able to compress the distortion to a
close-to-zero level. In fact, the ‘Zero-D’ claim had been validated by many existing Laowa lenses owners from all around
the world.
Extreme close focusing distance
The lens able to focus at an extremely close focusing distance. It can focus anywhere from 18cm away from sensor (10cm from
front element) all the way to infinity. No diopter will be needed in this case. Wide angle lenses usually create a
‘flat’ image with very deep DOF but with this close focusing ability and a fast t-stop, Laowa 12mm is able to create
some unique wide & shallow DOF look with pleasing bokeh.
Robust and professional cinema housing
Designed with standard 0.8 mod gears on both aperture and focusing rings for easy installation of follow-focus system.
An extended 270° smooth focus throw is designed for accruate focus pulling. The entire enclosure of the lens is made up
of aluminum alloy.
A 114mm step-ring is included in the package to expand the front diameter to fit with industry sized matte box. Venus
Optics have tested with a number of matte boxes in the market and it is still free of vignetting on VV sensor with the
matte box installed.
- MPN – VE1229CC
- GTIN – 6940486701289
| Focal Length | 12mm |
|---|---|
| Iris Blades | 7 |
| Length | 3.43 " / 9 cm |
| Focus Rotation | 270° |
| Focus Scales | (Imperial) Feet |
| Filter Thread | None |
| Front Diameter | 102 mm |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch |
| Optical Design | 16 Elements in 10 Groups |
| Lens Mount | Canon EF |
| Minimum Focus Distance from Image Plane | 7" / 17.78 cm |
| Horizontal Angle of View | Super35: 122° |
| Minimum T-Stop | T22 |
| Maximum T-Stop | T2.9 |
| Image Circle | 44.7 mm |
| Format | Full Frame |
| Weight | 0.8 kg |
